taglib and JSTL

Problem

  • Java-кода в JSP-страницах

  • т.е. код языка программирования в языке разметки

Solution

  • Нужен механизм похожий на язык разметки

  • taglib and JSTL

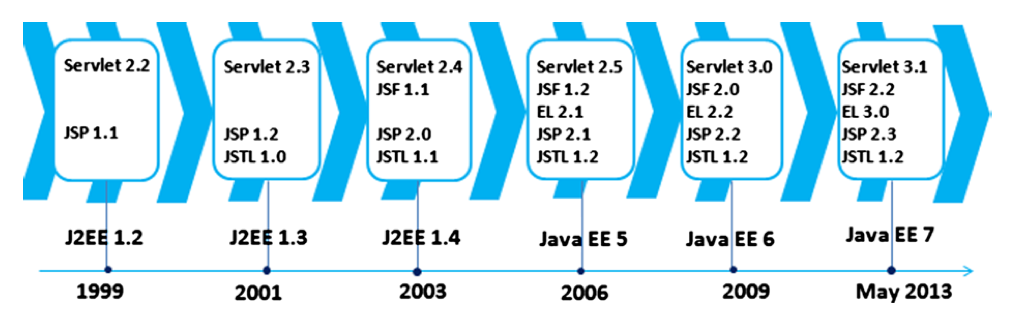

JavaEE Web history

Java for Web history

taglib

How create?

  • design tag handler class

  • design XML-file (Tag Library Descriptor)

  • register in descriptor web.xml

  • set file placement TLD in JSP with directive taglib

Interface Tag

  • setter() методы для инициализации переменных

  • doStartTag() определяет начало обработки действия тега

  • doEndTag() определяет окончание обработки действия тега

  • doFinally() определяет окончание обработки действия тега при использовании интерфейса try .. catch .. finally

Interface IterationTag

  • doAfterBody()

Interface BodyTag

  • setBodyContent(BodyContent)

  • doInitBody()

NumberFormatterTag.java

package com.rakovets.jsp.customtags;

import java.io.IOException;
import java.text.DecimalFormat;

import javax.servlet.jsp.JspException;
import javax.servlet.jsp.SkipPageException;
import javax.servlet.jsp.tagext.SimpleTagSupport;

public class NumberFormatterTag extends SimpleTagSupport {
    private String format;
    private String number;

    public NumberFormatterTag() {
    }

    public void setFormat(String format) {
        this.format = format;
    }

    public void setNumber(String number) {
        this.number = number;
    }

    @Override
    public void doTag() throws JspException, IOException {
        System.out.println("Number is:" + number);
        System.out.println("Format is:" + format);
        try {
            double amount = Double.parseDouble(number);
            DecimalFormat formatter = new DecimalFormat(format);
            String formattedNumber = formatter.format(amount);
            getJspContext().getOut().write(formattedNumber);
        } catch (Exception e) {
            e.printStackTrace();
            // stop page from loading further by throwing SkipPageException
            throw new SkipPageException("Exception in formatting " + number
                    + " with format " + format);
        }
    }
}

numberformatter.tld

<?xml version="1.0" encoding="UTF-8" ?>

<taglib xmlns="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-jsptaglibrary_2_0.xsd"
        version="2.0">
    <description>Number Formatter Custom Tag</description>
    <tlib-version>2.1</tlib-version>
    <short-name>mytags</short-name>
    <uri>https://rakovets.by/jsp/tlds/mytags</uri>
    <tag>
        <name>formatNumber</name>
        <tag-class>by.rakovets.jsp.customtags.NumberFormatterTag</tag-class>
        <body-content>empty</body-content>
        <attribute>
            <name>format</name>
            <required>true</required>
        </attribute>
        <attribute>
            <name>number</name>
            <required>true</required>
        </attribute>
    </tag>
</taglib>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee"
        xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_4_0.xsd"
        version="3.0">
    <display-name>JSPCustomTags</display-name>
    <welcome-file-list>
        <welcome-file>index.jsp</welcome-file>
    </welcome-file-list>

    <jsp-config>
        <taglib>
            <taglib-uri>https://rakovets.by/jsp/tlds/mytags</taglib-uri>
            <taglib-location>/WEB-INF/numberformatter.tld</taglib-location>
        </taglib>
    </jsp-config>
</web-app>

index.jsp

<%@ page contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" %>
<!DOCTYPE HTML>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <title>Custom Tag Example</title>
    <%@ taglib uri="https://rakovets.by/jsp/tlds/mytags" prefix="mytags" %>
</head>
<body>
    <h2>Number Formatting Example</h2>
    <mytags:formatNumber number="100050.574" format="#,###.00"/><br><br>
    <mytags:formatNumber number="1234.567" format="$# ###.00"/><br><br>
    <p><strong>Thanks You!!</strong></p>
</body>
</html>

JSTL

JSTL

  • Jakarta Standard Tag Library (JSP Standard Tag Library)

  • избавляет от Java-кода в JSP-страницах

  • позволяют организовать условные выражения и циклы внутри страниц

  • для работы необходима соответствующая библиотека

How enable in jsp?

Подключаются с помощью директивы:

<%@ taglib prefix="c"
        uri="http://java.sun.com/jsp/jstl/core" %>

Types

  • Core Tags позволяют использовать условные операции и циклы без необходимости использовать Java

  • Formatting tags содержат механизм интернационализации приложения

  • SQL tags содержат инструменты для работы с SQL-запросами

  • XML tags содержат инструменты для обработки XML

  • JSTL Functions содержат инструменты для разбора/форматирования строк

Core Tags

Core Tags

  • <c:out>

  • <c:set>

  • <c:remove>

  • <c:catch>

  • <c:if>

  • <c:choose>

  • <c:when>

Core Tags

  • <c:otherwise >

  • <c:import>

  • <c:forEach >

  • <c:forTokens>

  • <c:param>

  • <c:redirect >

  • <c:url>

Examples

Установка значения

Значение переменной:

<c:set var="language" value="en_US" scope="request"/>

Значение поля объекта:

<c:set target="book" property="name" value="Зелёная миля"/>

Вывод данных

<c:out value="Какой-то текст"/>
<c:out value="${book.name}"/>

Условные выражения

<c:if test="${условие}">
    Выводимый результат
</c:if>
<c:if test="${book.name not empty}">
    <span>${book.name}</span>
</c:if>

Условные выражения

<c:choose>
    <c:when test="${ book.author eq 'Pushkin'}">
        Российская классика
    </c:when>
    <c:when test="${ book.author eq 'Dickens'}">
        Английская классика
    </c:when>
    <c:otherwise>
        Мировая классика
    </c:otherwise>
</c:choose>

Циклы

<c:forEach var="book" items="${request.books}">
    <p>${book.name} by ${book.authorName}</p>
</c:forEach>

<c:forEach var="bookId" begin="1" end="10">
    <p>${books[bookId].name}</p>
</c:forEach>

Formatting tags

Formatting tags

  • <fmt:formatNumber>

  • <fmt:parseNumber>

  • <fmt:formatDate>

  • <fmt:parseDate>

  • <fmt:bundle>

  • <fmt:setLocale>

Formatting tags

  • <fmt:setBundle>

  • <fmt:timeZone>

  • <fmt:setTimeZone>

  • <fmt:message>

  • <fmt:requestEncoding>

SQL tags

SQL tags

  • <sql:setDataSource>

  • <sql:query>

  • <sql:update>

  • <sql:param>

  • <sql:dateParam>

  • <sql:transaction>

XML tags

XML tags

  • <x:out>

  • <x:parse>

  • <x:set>

  • <x:if>

  • <x:forEach>

XML tags

  • <x:choose>

  • <x:when>

  • <x:otherwise>

  • <x:transform>

  • <x:param>

JSTL Functions

JSTL Functions

  • fn:contains()

  • fn:containsIgnoreCase()

  • fn:endsWith()

  • fn:escapeXml()

  • fn:indexOf()

  • fn:join()

  • fn:length()

  • fn:replace()

JSTL Functions

  • fn:split()

  • fn:startsWith()

  • fn:substring()

  • fn:substringAfter()

  • fn:substringBefore()

  • fn:toLowerCase()

  • fn:toUpperCase()

  • fn:trim()

Examples

Подключение

Для использования вспомогательных функций JSTL следует подключить библиотеку:

<%@ taglib prefix="fn"
        uri="http://java.sun.com/jsp/jstl/functions" %>

Использование

  • ${fn:length(аргумент)} - подсчитывает число элементов в коллекции или длину строки

  • ${fn:toUpperCase(String str)} - изменяет регистр строки

  • ${fn:toLowerCase(String str)} - изменяет регистр строки

  • ${fn:substring(String str, int from, int to)} - извлекает подстроку
