Apache Tomcat

Apache Tomcat

Apache Software Foundation
Apache Tomcat

Versions

Tomcat

Java

Servlet

JSP

EL

WebSocket

JASPIC

10.0.x

8

5.0

3.0

4.0

2.0

2.0

9.0.x

8

4.0

2.3

3.0

1.1

1.1

8.5.x

7

3.1

2.3

3.0

1.1

1.1

8.0.x

7

3.1

2.3

3.0

1.1

N/A

7.0.x

6/7

3.0

2.2

2.2

1.1

N/A

6.0.x

5

2.5

2.1

2.1

N/A

N/A

5.5.x

1.4

2.4

2.0

N/A

N/A

N/A

4.1.x

1.3

2.3

1.2

N/A

N/A

N/A

3.3.x

1.1

2.2

1.1

N/A

N/A

N/A

Components

  • Catalina - is Tomcat’s servlet container.

  • Coyote - is a Connector component for Tomcat that supports the HTTP 1.1 and 2 protocol as a web server.

  • Jasper - is Tomcat’s JSP Engine

Architecture

Architecture

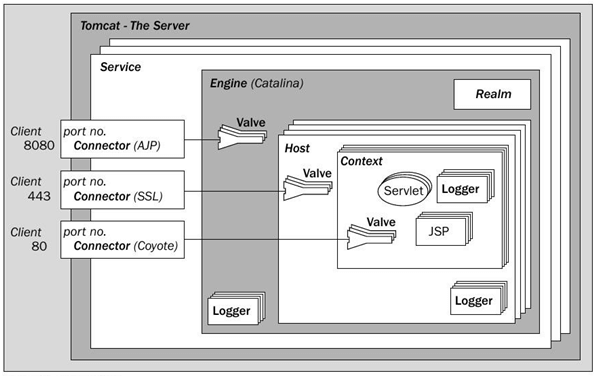

Apache Tomcat Architecture

Architecture

Tomcat instance is the top-level component

  • only one instance per JVM

    • multiple instances can run on separate JVM and network ports

  • server.xml provides an XML representation of relationships between the different containers

server.xml

<Server>
    <Service>
        <Connector/>
        <Engine>
            <Host>
                <Context></Context>
            </Host>
        </Engine>
    </Service>
</Server>

Architecture

Apache Tomcat Architecture

Architecture

  • <Server> represents the entire Catalina server engine

    • Catalina is the Java servlet container implementation

    • may contain one or more <Service> containers

Architecture

Apache Tomcat Architecture

Architecture

  • <Service> holds a collection of <Connector>

    • connectors share one <Engine>

  • <Connector> defines the port for handling request and response

Architecture

Apache Tomcat Architecture

Architecture

  • <Engine> handles all requests received by the connectors

  • <Host> defines virtual hosts

    • the virtual hosts are contained in an instance of engine

    • each host can be a parent to one or more <Context> component

  • <Context> represents a web application

Architecture

Apache Tomcat Architecture

Apache Tomcat overview

  • Tomcat is not

    • a Web Profile server

    • a httpd server

      • Apache httpd is better

  • Tomcat is

    • just a Java EE web container

  • Tomcat is part of many projects

    • JBoss

    • …​

Practice

Directories

  • bin

  • conf

  • lib

  • logs

  • temp

  • webapps

  • work

webapps

  • .war (*Web Archive) – представляет собой упакованное, готовое к запуску с помощью Apache Tomcat приложение

  • oбязательно содержит директорию WEB-INF

    • classes/ содержит скомпилированные java-классы (сервлеты, сущности и т.д.)

    • lib/ содержит необходимые библиотеки

    • web.xml файл конфигурации приложения (в нём описывается конфигурация сервлетов

Live-coding

How works it?

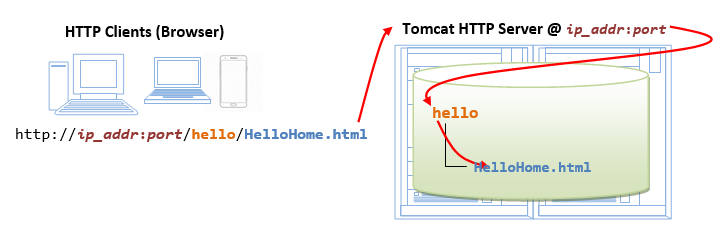

Web static app

Practice

  • Create static web-application 'CV'

  • Deploy to Apache Tomcat 9
